Fairfield Monastery Railing Sketches
Fairfield Monastery End Scroll Sketches
Fairfield Monastery Prototype Railing Main Support. Materials: A Work is real Wrought Iron. No bolts, screws or epoxies. Only traditional Methods to fabricate and attach railings to SandStone Walls.
Handrail sketches
Sketches for exterior handrails
Reworking Wrought iron into dimensional stock
Details section of large wrought iron bar (2")
Conceptual railing ideas
Quick sketches for railing ends

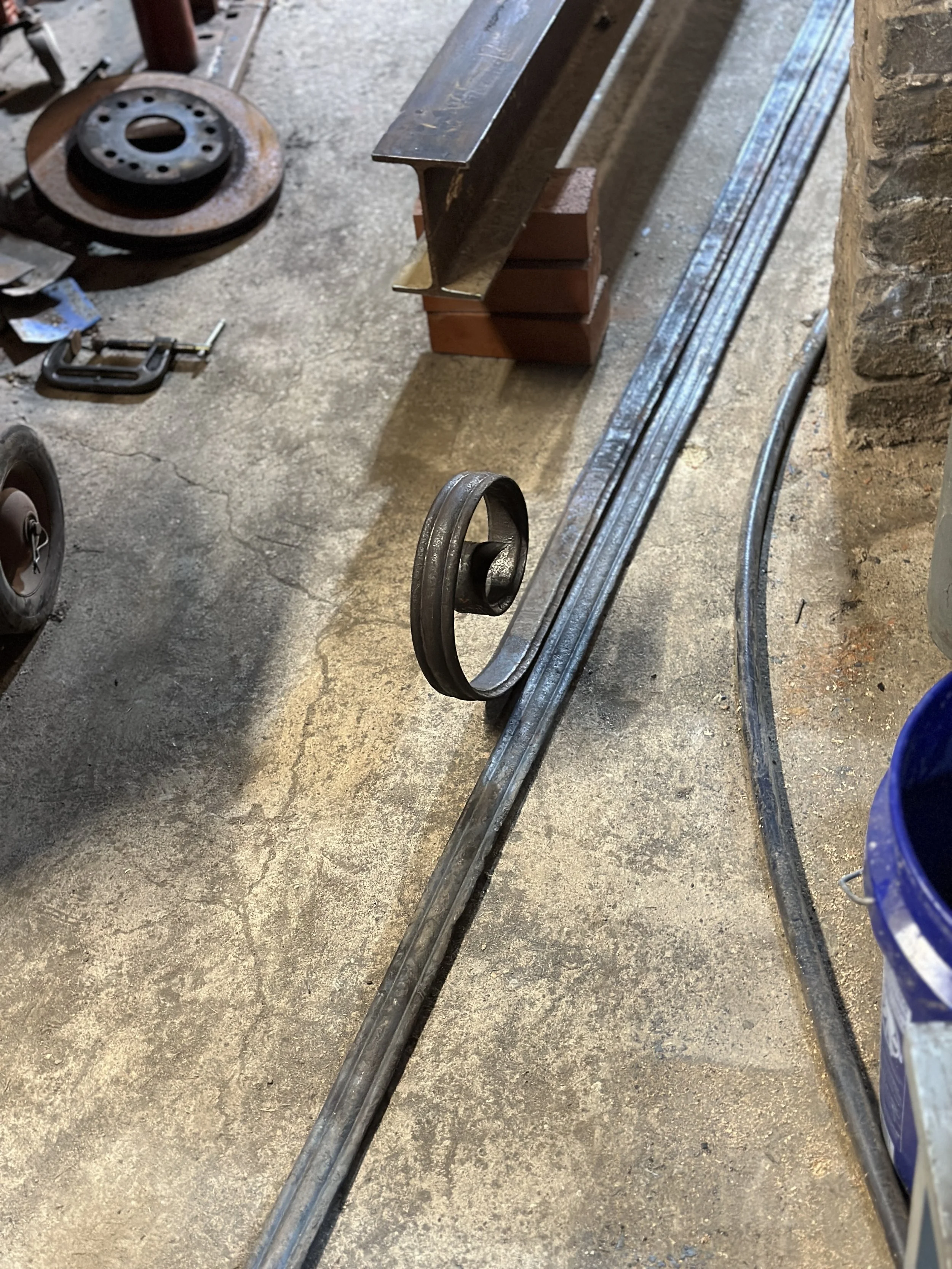

Hand rolling railing end on Thick Wrought Iron Bar

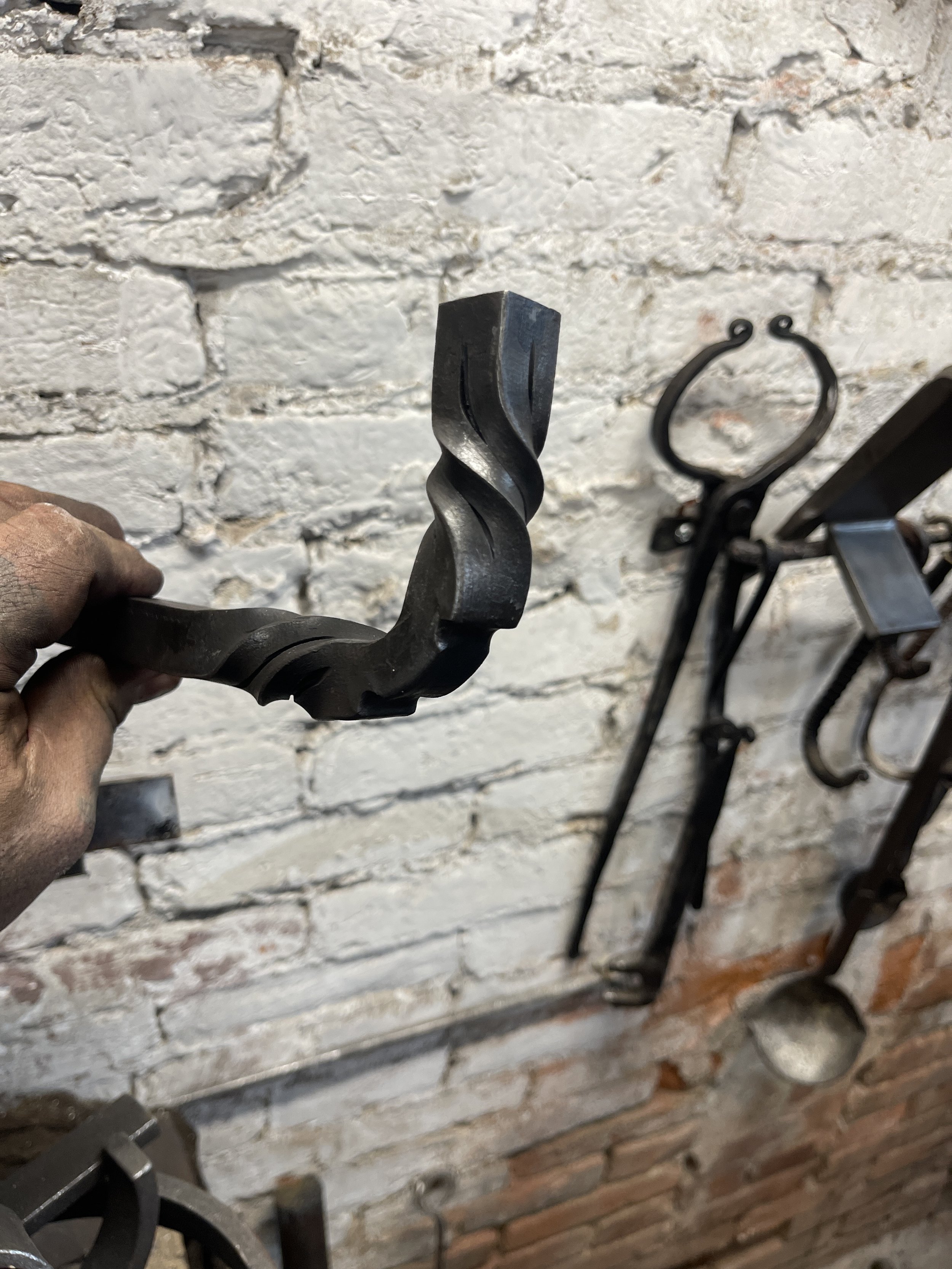

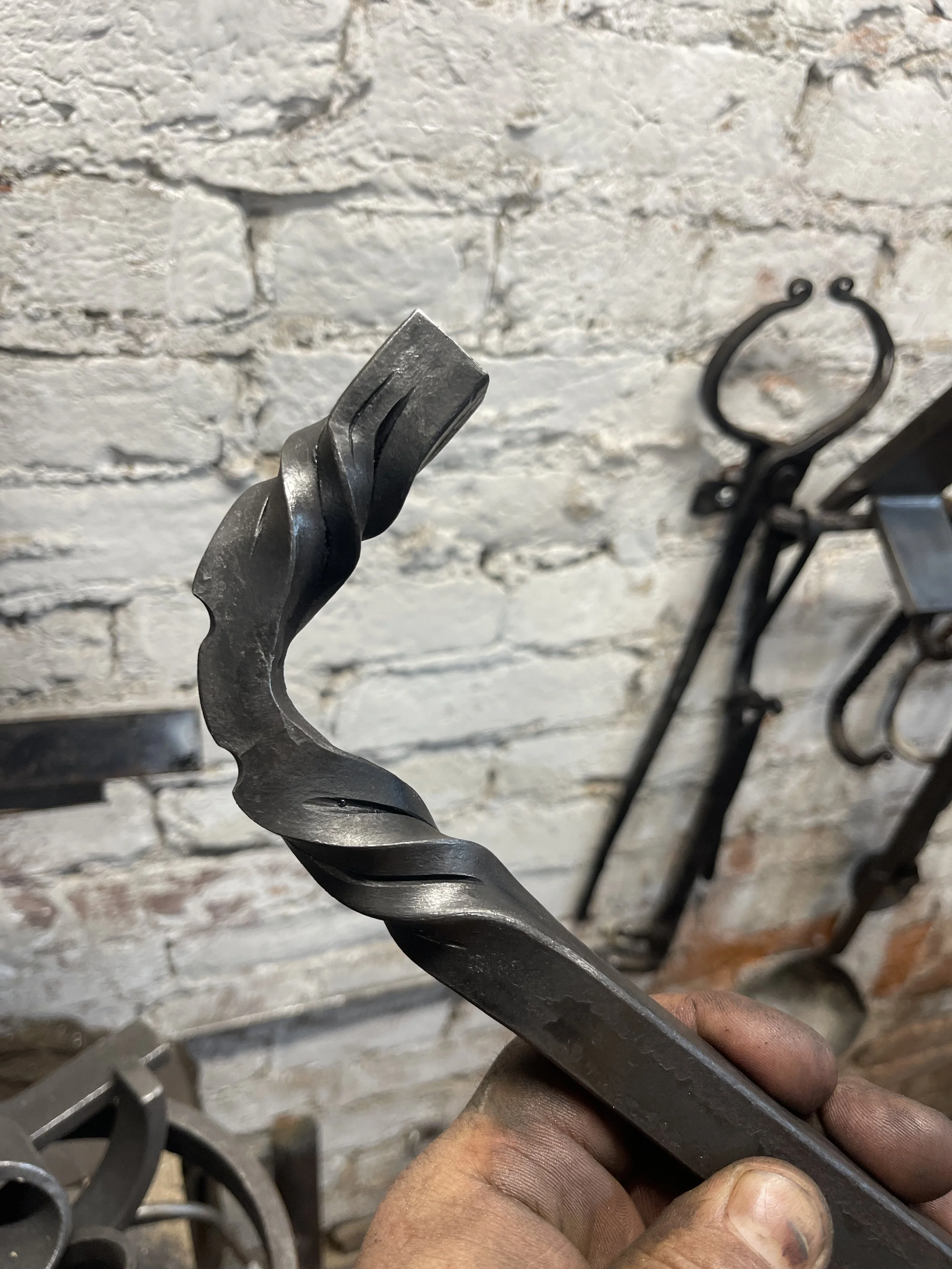

Thick wrought iron bar end ideas

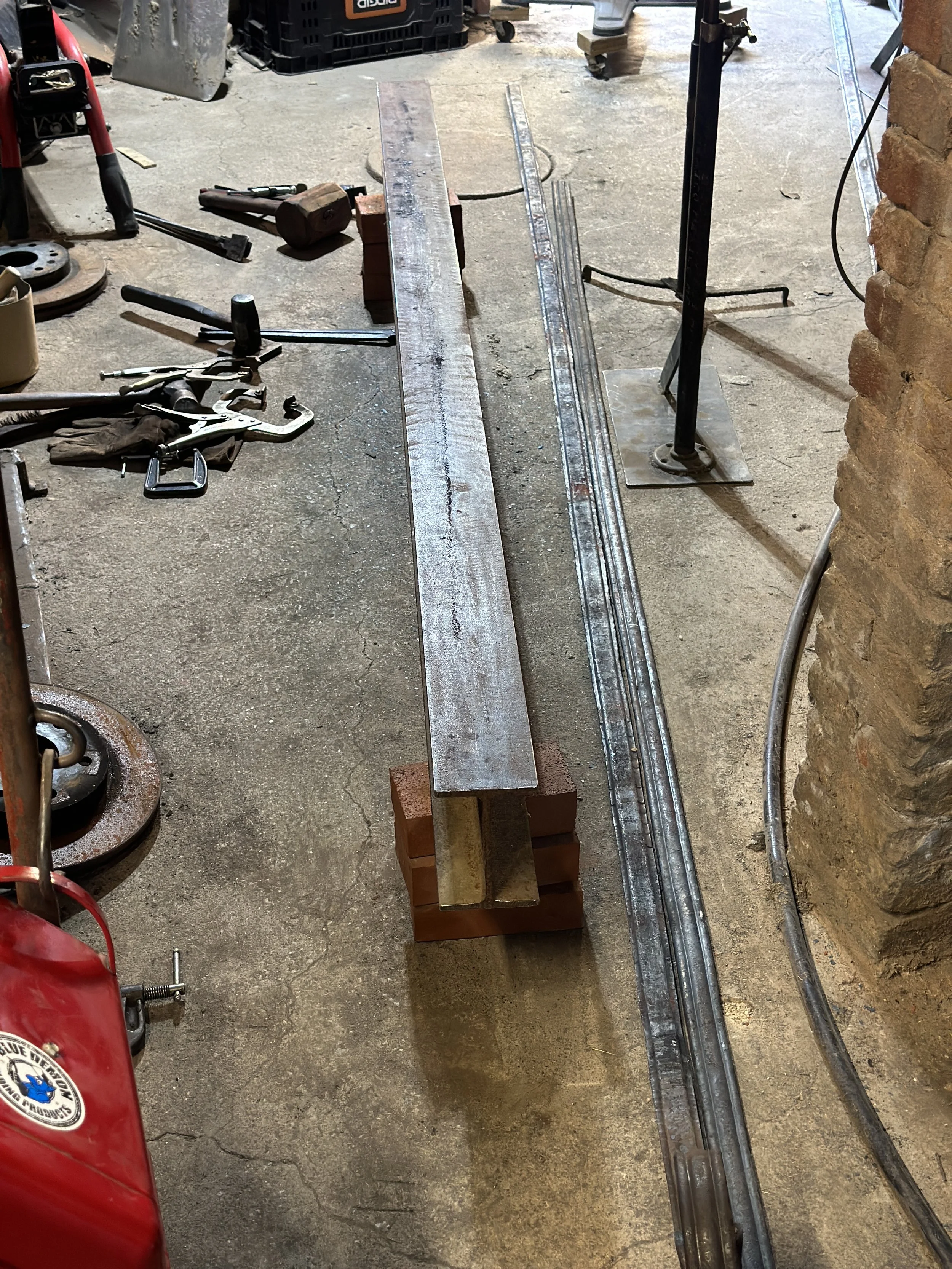

Reworking Wrought iron into dimensional 3/4" stock
Bracket concept

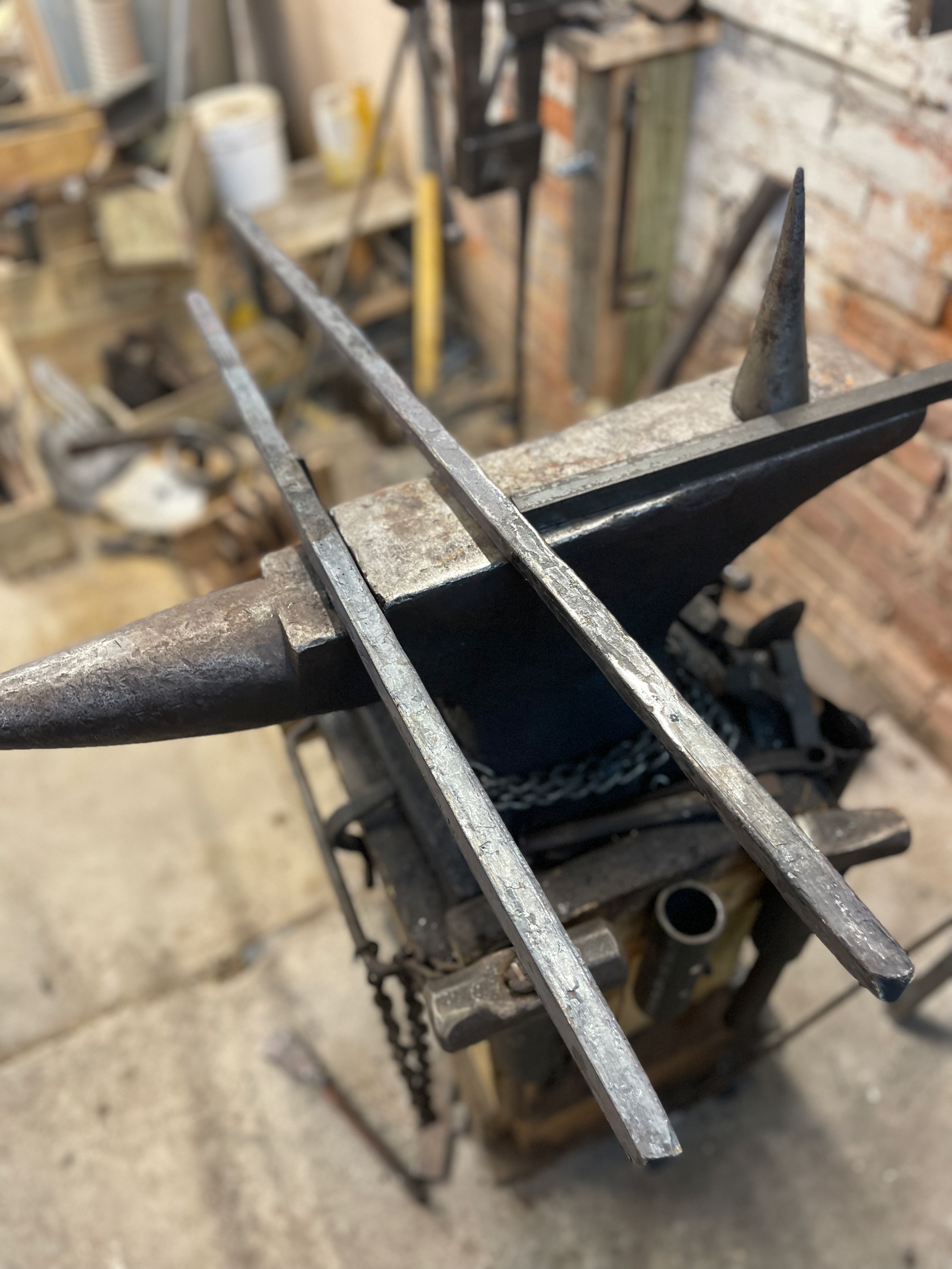

Re forging salvaged 1800s wrought iron into bar stock

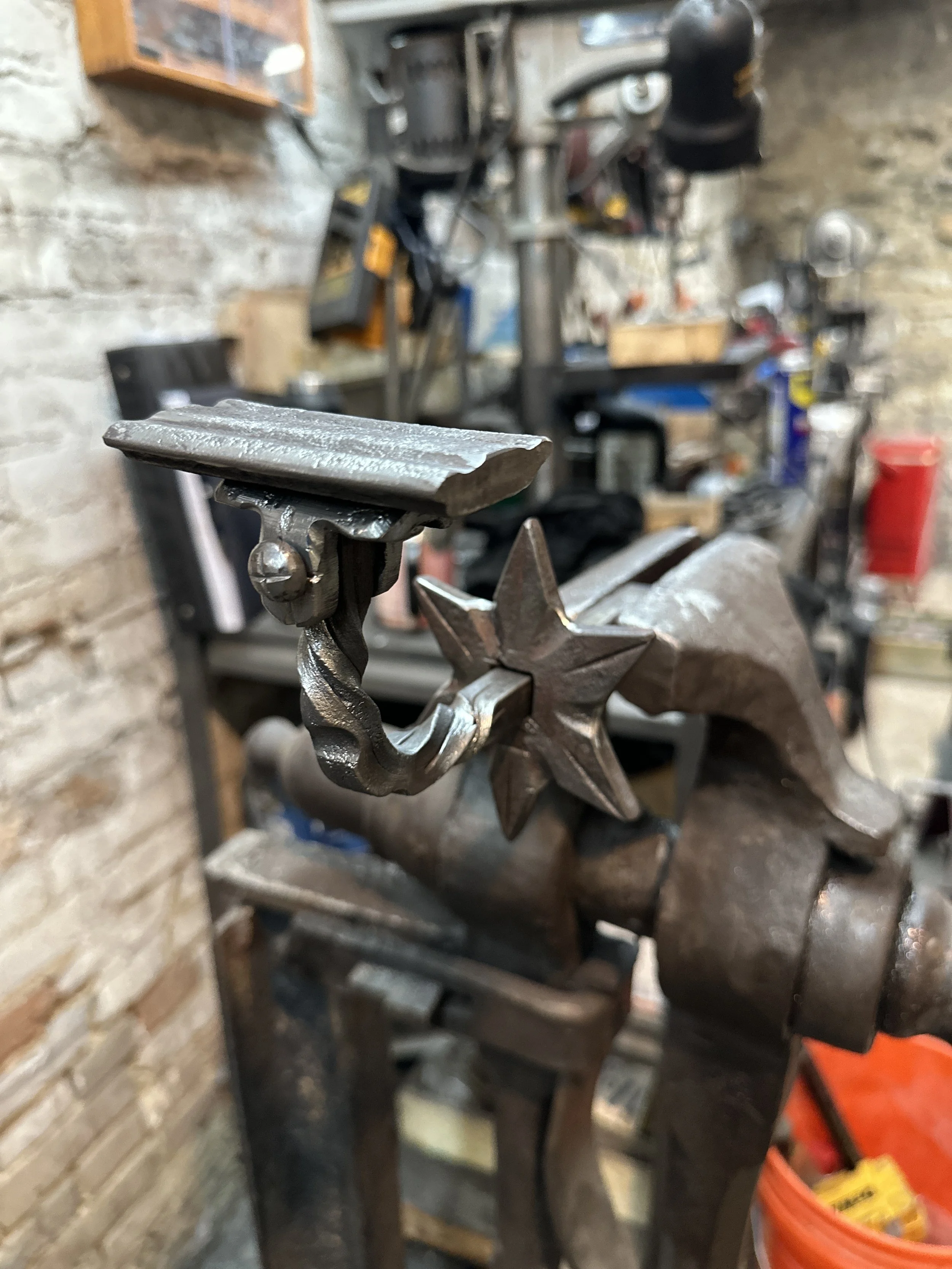

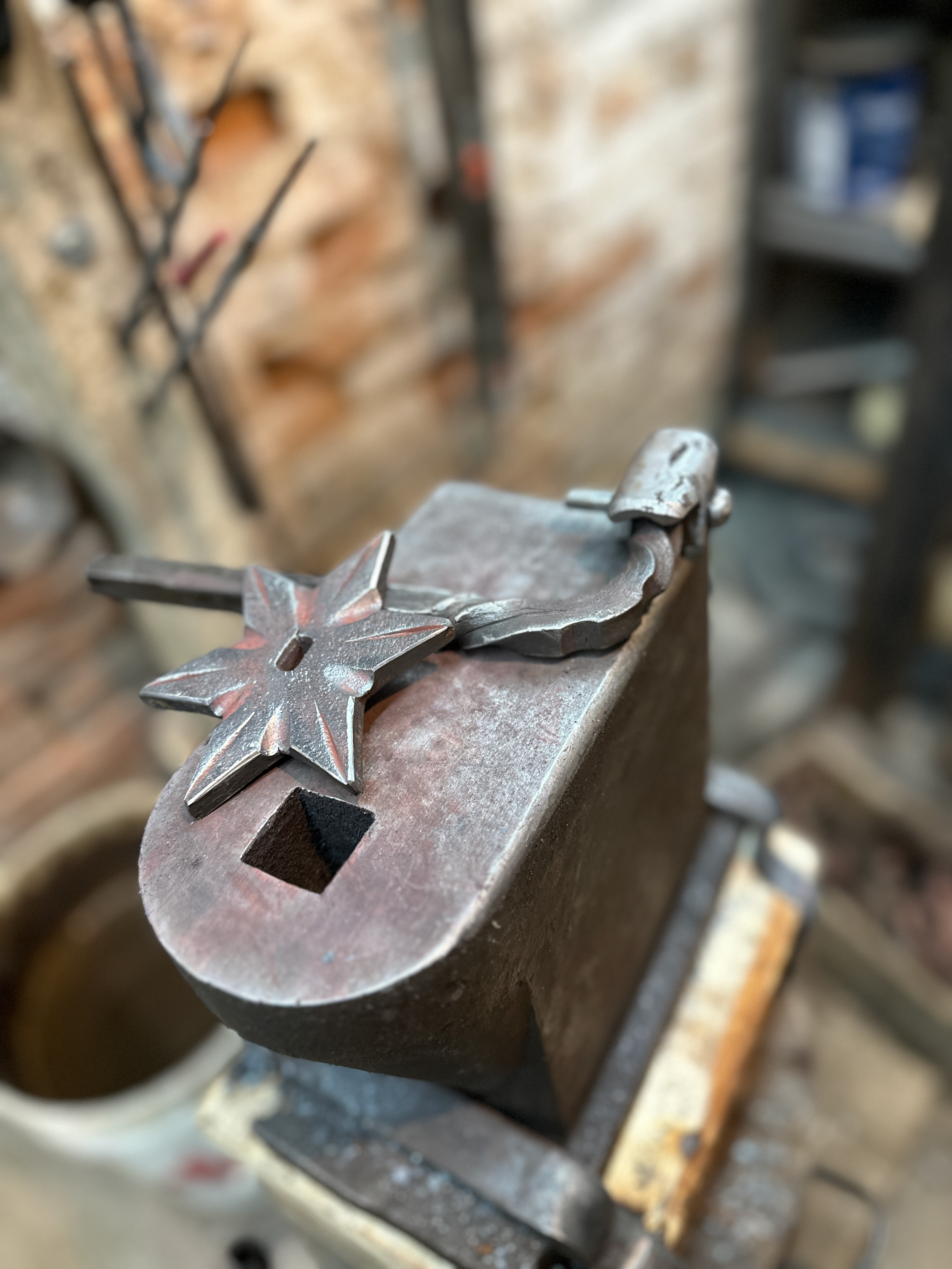

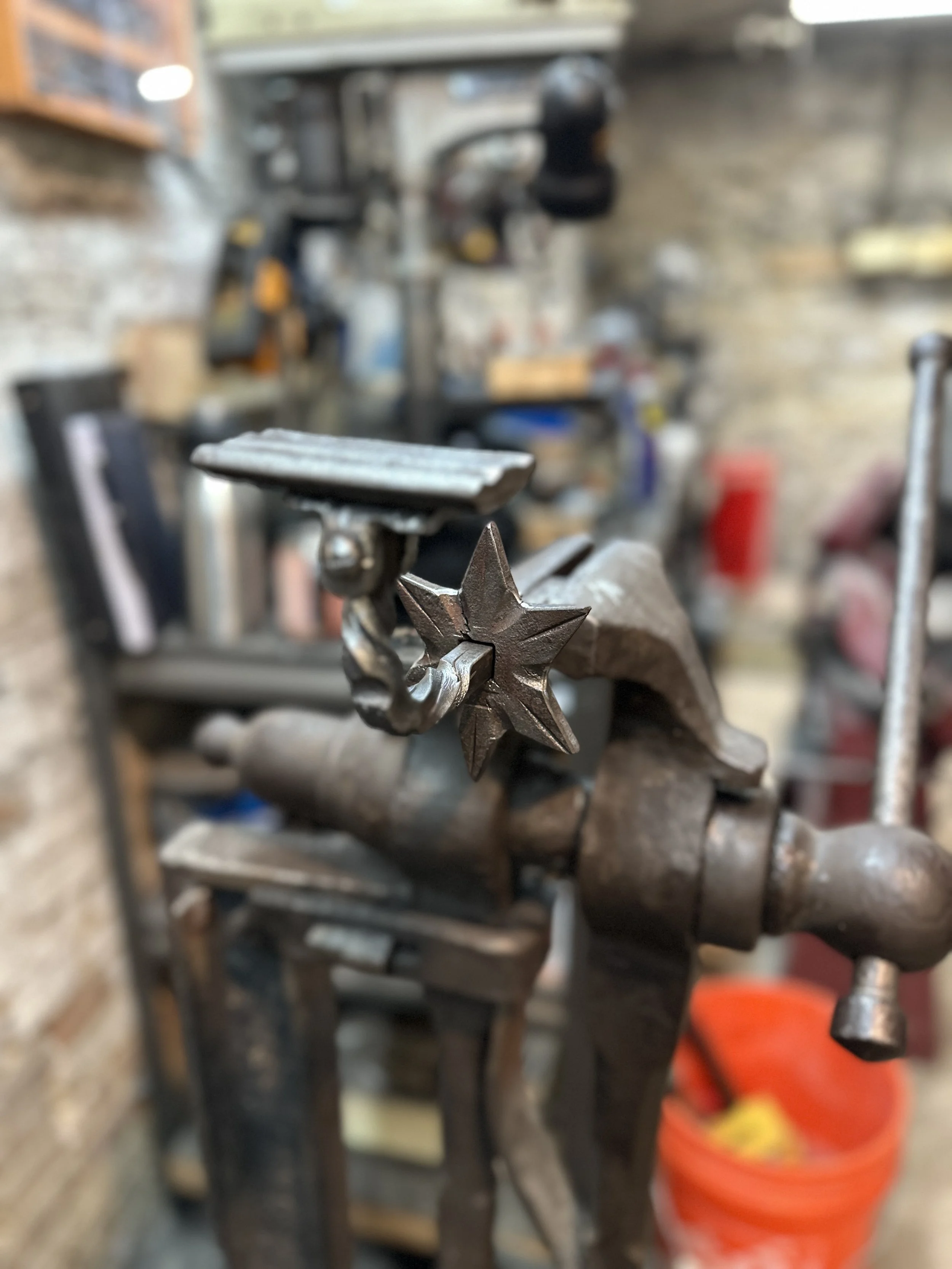

Forged wrought iron Handrail Support (Carmelite Star) to bring part of the Carmelite crest into the design. The six pointed stars which represent the three great epochs in the history of Carmel.
Original design proto-type for handrail bracket SUPPORT.
Reforged and refined salvaged wrought iron into plate and bar stock
Wrought iron Brackets early steps
Wrought Iron Brackets early concepts
Hand forged wrought iron early concepts
All parts create and hand forged salvages wrought iron

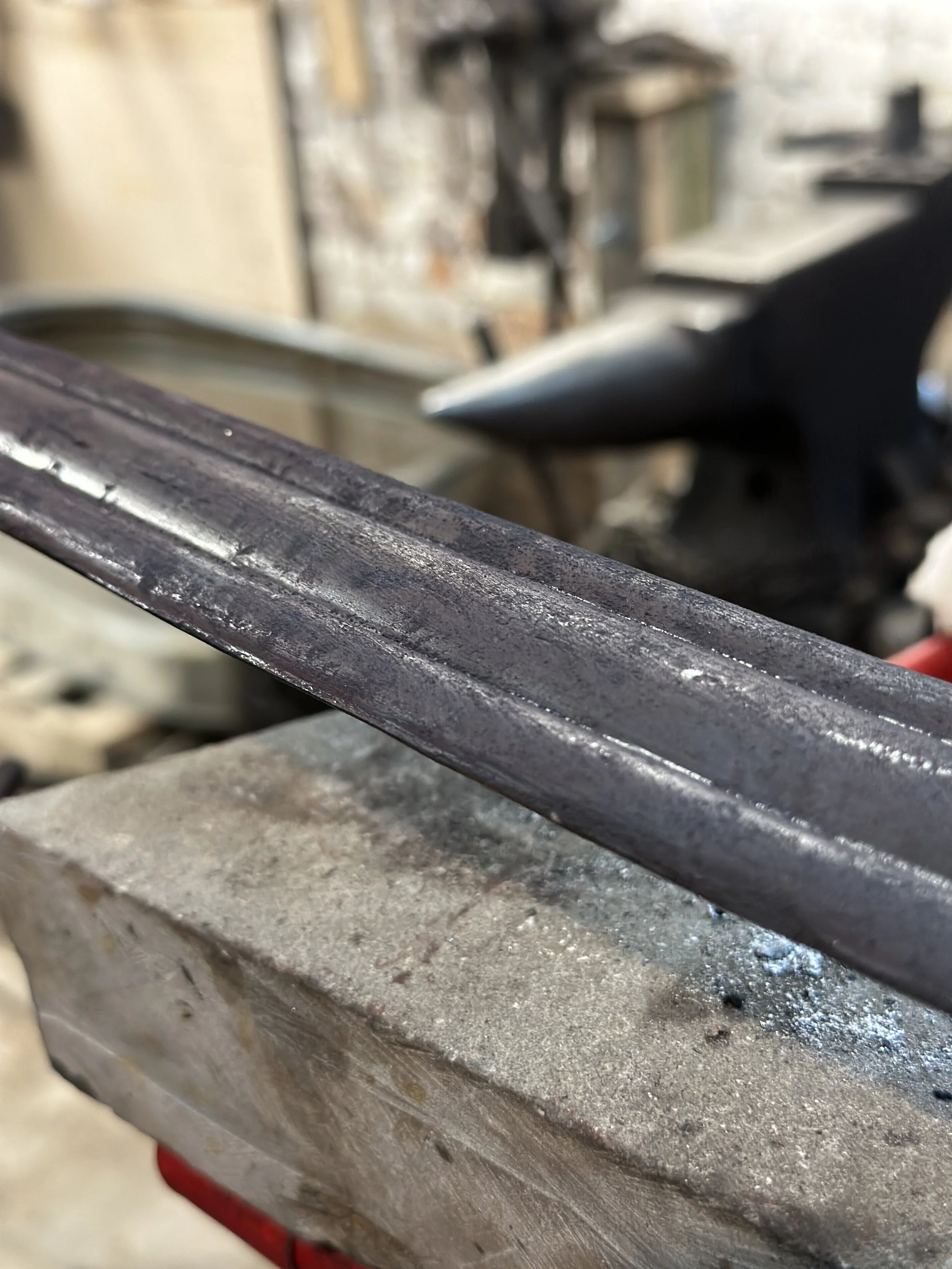

Wrought iron hand-forged railing profile design
Eyelet Hooks for hanging candles/lanterns in crypt. Inlaid into brickwork on the barreled ceilings in the chapel
Eyelet Hooks for hanging candles/lanterns in crypt. Inlaid into brickwork on the barreled ceilings in the chapel
